Description

"!!! warning Disclaimer\r\nThis script does not manage inputs. It only computes drawing based on a `Vector2`. It is up to the developer to \"plug\" it with an input management script to interactively visualize a joypad stick or any other controller (dpad ? mouse ? keys ?) state.\r\n!!!\r\n\r\n## Introduction\r\n\r\nEither for debug purpose or just because you need something simple, you may want to display a stick status. By stick, we mean a joypad analog stick, digital pad or anything that could be translated in a couple of values between -1 and 1 on both X and Y axises.\r\n\r\nThus, the following snippet is designed to draw this status given a `Vector2` as a disc positioned along X\/Y axises and a text with actual values at a given precision.\r\n\r\n## Parameters\r\n\r\n* **stick_position** : The stick position value to display as a `Vector2`. The value is automatically clamped between -1 and 1 on both axises\r\n* **debug** _(default : false)_ : if `true`, the control is responsive to the left stick of any joypad\r\n* Text\r\n\t* **text_show** _(default : false)_ : If `true`, displays the stick values\r\n\t* **text_precision** _(default : 2)_ : The text precision that display the position value. It determines the number of digits of the fractional part\r\n\t* **text_font** _(default : ThemeDB.fallback_font)_ : Font to display the stick values\r\n\t* **text_size** _(default : ThemeDB.fallback_font_size)_ : Font size\r\n* Colors\r\n\t* **color_text** _(default : Color.WHITE)_ : Color of the stick value text\r\n\t* **color_background** _(default : Color(.1))_ : Stick visualizer background color (big disc)\r\n\t* **color_foreground** _(default : Color(.6))_ : Stick visualizer foreground color (stick position disc)\r\n* **size_stick_ratio** _(default : 0.5)_ : Size of the stick disc proportionally to the containing disc"

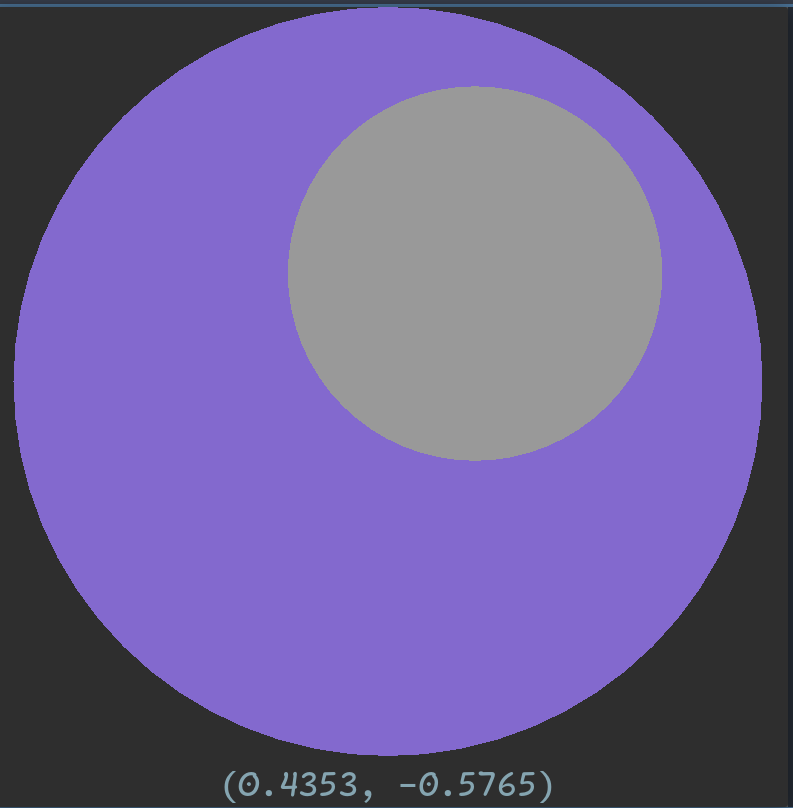

Screenshots

Main code

extends Control

@export var stick_position : Vector2 = Vector2.ZERO :
	set(value) :
		stick_position = value.normalized() if value.length_squared() > 1. else value
		queue_redraw()

@export var debug : bool = false :
	set(value):
		debug = value
		set_process_input(debug)

@export_subgroup("Text", "text_")
@export var text_show : bool = false :
	set(value) :
		text_show = value
		queue_redraw()

@export_range(0, 8, 1) var text_precision : int = 2 :
	set(value):
		text_precision = value
		_compute_text_format()

@export var text_font : Font = ThemeDB.fallback_font :
	set(value) :
		text_font = value
		_compute_font_sizes()

@export var text_size : int = ThemeDB.fallback_font_size :
	set(value) :
		text_size = value
		_compute_font_sizes()

@export_subgroup("Colors", "color_")
@export var color_text : Color = Color.WHITE
@export var color_background : Color = Color(0.1, 0.1, 0.1)
@export var color_foreground : Color = Color(0.6, 0.6, 0.6)

@export_subgroup("Sizes", "size_")
@export var size_stick_ratio : float = 0.25

var font_height : float

var text_height : float

var text_format : String

func _ready() -> void:
	_compute_font_sizes()
	_compute_text_format()
	set_process_input(debug)

func _compute_text_format() -> void:
	text_format = "(%%.0%df, %%.0%df)" % [ text_precision, text_precision ]
	queue_redraw()

func _compute_font_sizes() -> void:
	if text_font != null:
		font_height = text_font.get_height(text_size)
		text_height = font_height + text_font.get_descent(text_size)
	else:
		font_height = 0.
		text_height = 0.

func _draw() -> void:
	var rect : Rect2 = get_rect()
	draw_rect(rect, Color.TRANSPARENT)
	if text_show:
		rect.size.y = rect.size.y - text_height
	var center : Vector2 = rect.size / 2.
	var max_pos : Vector2 = center * (1. - size_stick_ratio)
	var max_sizes : Vector2 = center * size_stick_ratio
	var max_size : float = min(max_sizes.x, max_sizes.y)
	draw_circle(center, min(center.x, center.y), color_background)
	draw_circle(center + stick_position * max_pos, max_size, color_foreground)
	if text_font != null and text_show:
		var text : String = text_format % [ stick_position.x, stick_position.y ]
		var text_offset : float = text_font.get_string_size(text, HORIZONTAL_ALIGNMENT_CENTER ,-1, text_size).x / 2.
		draw_string(
			text_font,
			Vector2(center.x - text_offset, rect.size.y + font_height),
			text, HORIZONTAL_ALIGNMENT_CENTER, -1., text_size, color_text)

func _input(event : InputEvent) -> void:
	if event is InputEventJoypadMotion:
		var jev : InputEventJoypadMotion = event

		match jev.axis:
			JOY_AXIS_LEFT_X:
				stick_position.x = jev.axis_value
			JOY_AXIS_LEFT_Y:
				stick_position.y = jev.axis_value
			_:
				pass
